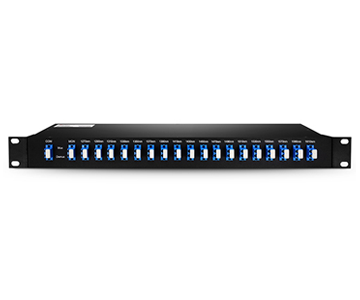

CWDM Mux/Demux 18 Channel

The CWDM Mux Demux covers all channels from 1270nm to 1610nm in 20nm increments. Without replacing any infrastructure, it totally supports data rates up to 180 Gbps by being completely protocol transparent. The main fields of applications are the use in SDH (STM-1, STM-4, STM-16, STM- 64), IP (Fast Ethernet, Gigabit Ethernet, 10 Gigabit) ATM and storage (1G, 2G, 4G, 8G, 10G FibreChannel) networks

Highlights

  • Multiplexing of up to 18 channels on fiber pair
  • Low insertion loss
  • 1U 19’’ low profile modular design
  • Duplex LC/UPC, easily support duplex patch cables between transceiver and passive unit
  • Compliant to ITU-T G.694.2 standard
  • Standard 18-channel CWDM band 1270 nm - 1610 nm, 20 nm spacing
  • Based on thin-film filter technology
  • Passive, no electric power required. (MTBF ca.500 years) s.
