GenPlex

High-Speed Data Networks and SMPTE Camera Chains

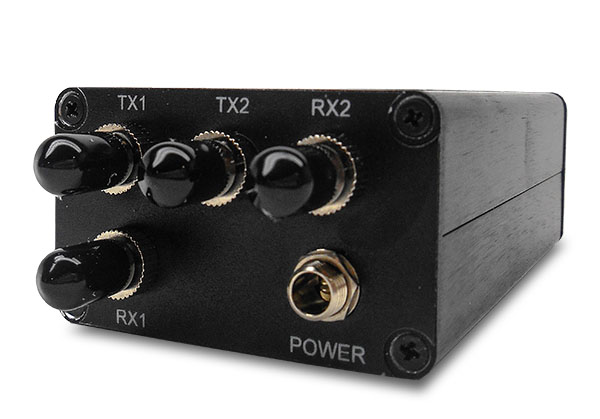

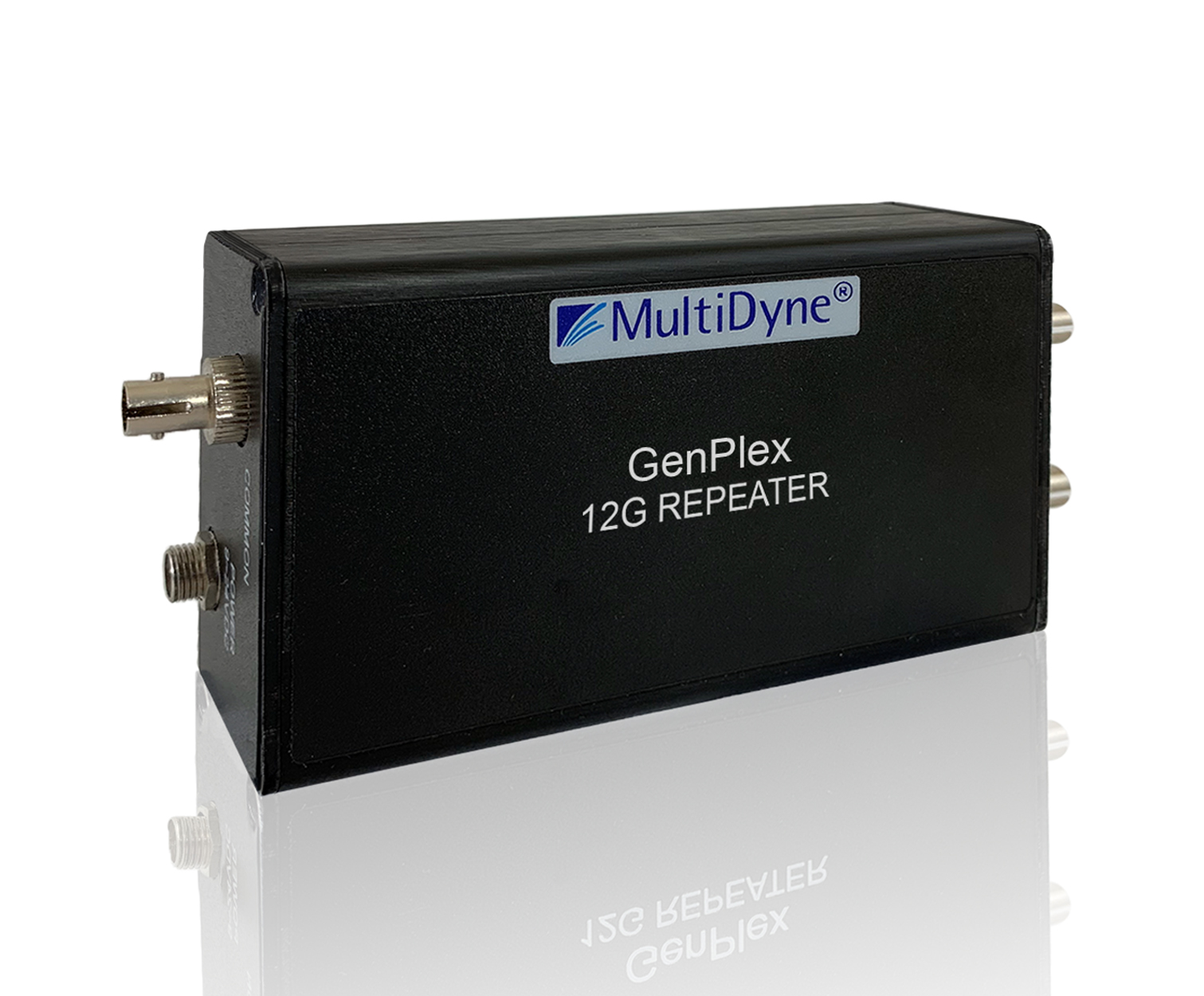

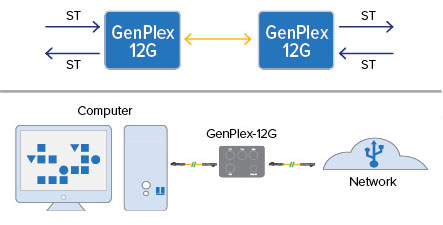

The MultiDyne GenPlex-12G can be strategically placed in the middle of long-distance runs in order to regenerate the signal. With two inputs and two outputs, the GenPlex-12G  is ideal for 10G data networks, as well as new 12G SMPTE camera chains, allowing the regeneration of a send and receive fiber.

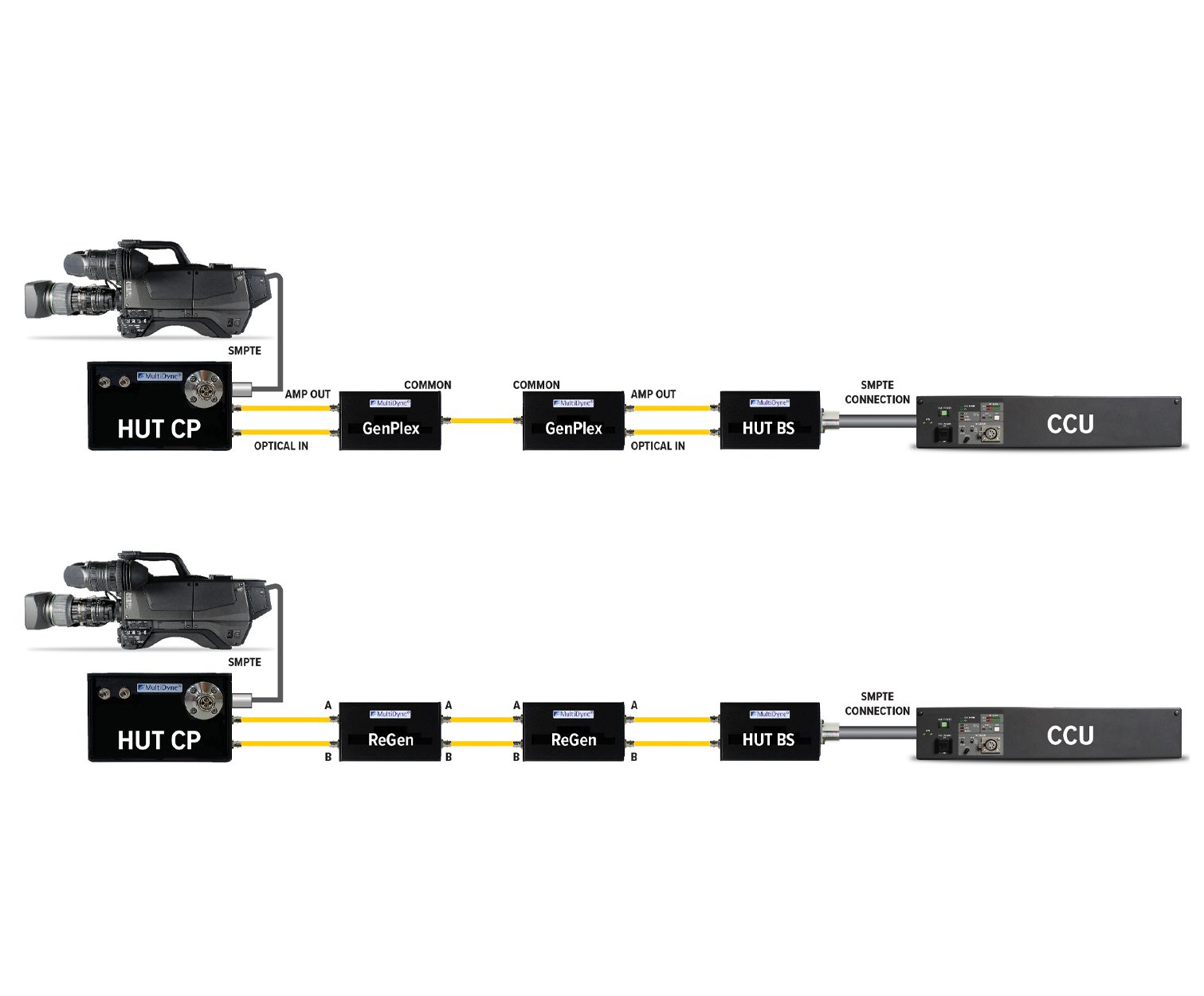

For SMPTE applications, the GenPlex-12G is available with a SMPTE 311 hybrid adapter which will convert to one or two standard single-mode fiber at the same time. The MultiDyne HUT (not included) can then be used to reinject the power and adapt back to SMPTE hybrid fiber.

  • Regenerate 12G optical signals
  • Ideal from high-speed data networks and SMPTE camera chains.
  • Data rate 1Gbps to 12Gbps.
  • Distance range up to 80Km.
  • Accepts any wavelength and transmits back at 1310nm or requested wavelength.
  • Power by 12VDC
