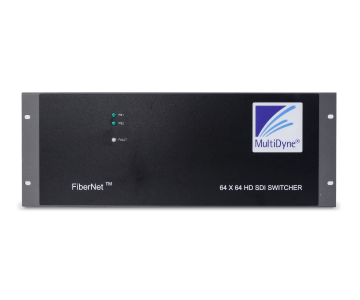

FiberNet Routing Matrix

Modular 3G/HD/SD-SDI Video Router

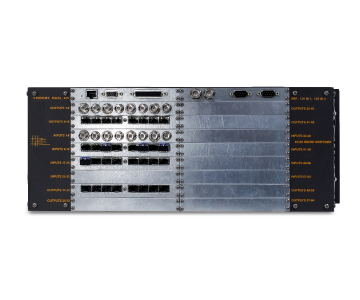

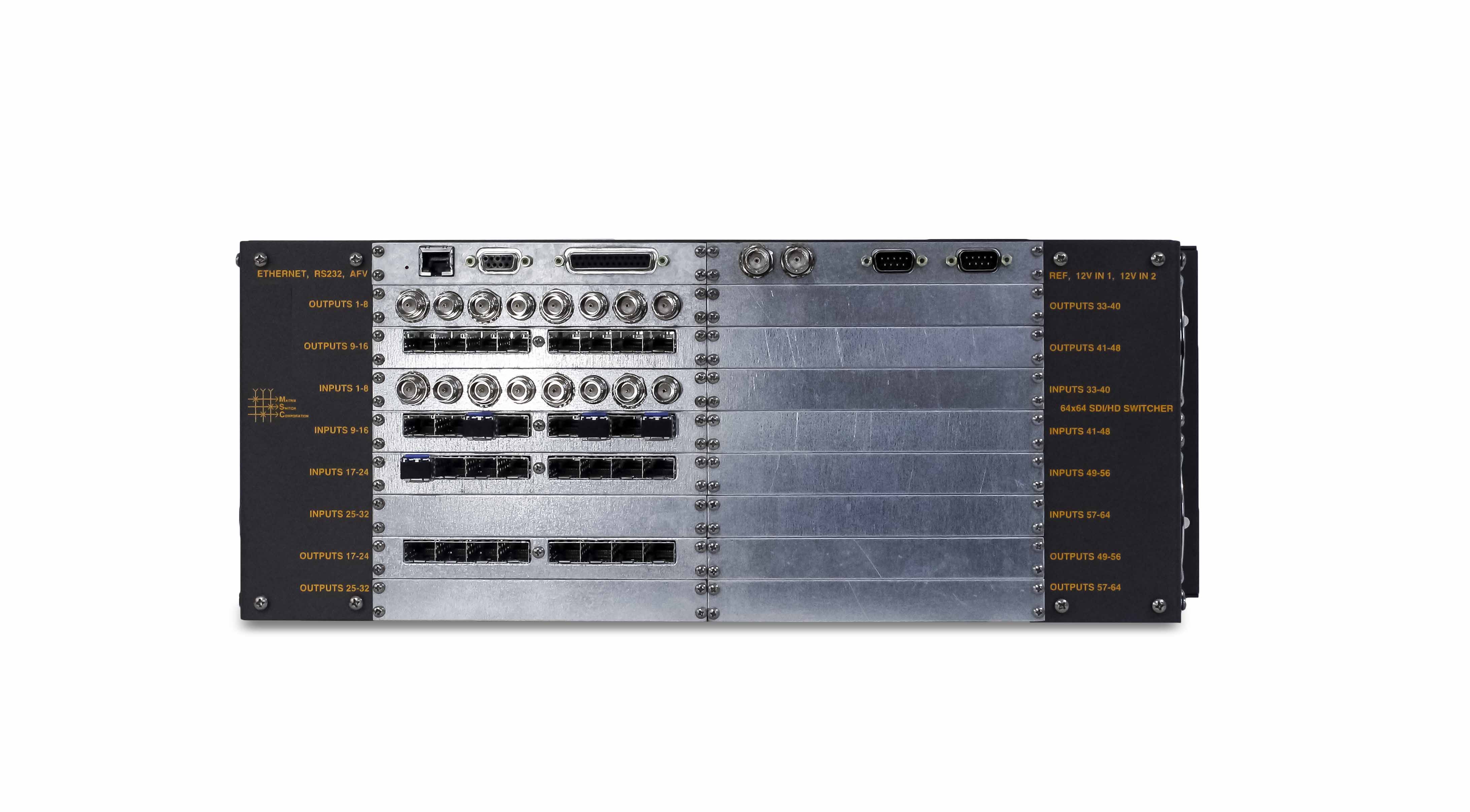

MultiDyne’s SDI Routing Switcher offers the ultimate in modular system flexibility. Systems are fully factory assembled and tested to your specifications and can be expanded in the field as needed. System size is determined by modular cards which independently expand the system by 8 input or 8 output ports up to 64 inputs and 64 outputs. MultiDyne offers BNC, SFP, and mixed BNC/SFP modular I/O cards to meet your requirements. The FiberNet Router includes everything needed for a complete system except your choice of I/O cards and SFP modules. These same cards and SFP modules are interchangeable across all router chassis options.

  • Re-clocking of standard SD, HD and 3G SDI data rates
  • Auto bypasses non-standad SDI rates from 20Mbit/s to 3Gbit/s
  • Video mute on every output
  • Passes SDI embedded audio and ancillary data
  • Interactive web page intrface (demo)
  • Vertical interval switching
  • Store and recall up to 10 presets (complete or partial matrix state recall)
  • Compact design
  • Software updates via Ethernet port
  • Backed by a full 2 year manufacturer parts and labor warranty
  • Redundant power supply include
  • Flexible control using the MASCOT text based protocol via TCP/IP, serial port or web page interface
  • Sierra Video Systems protocol support
  • Ask us about other 3rd party control protocol support
